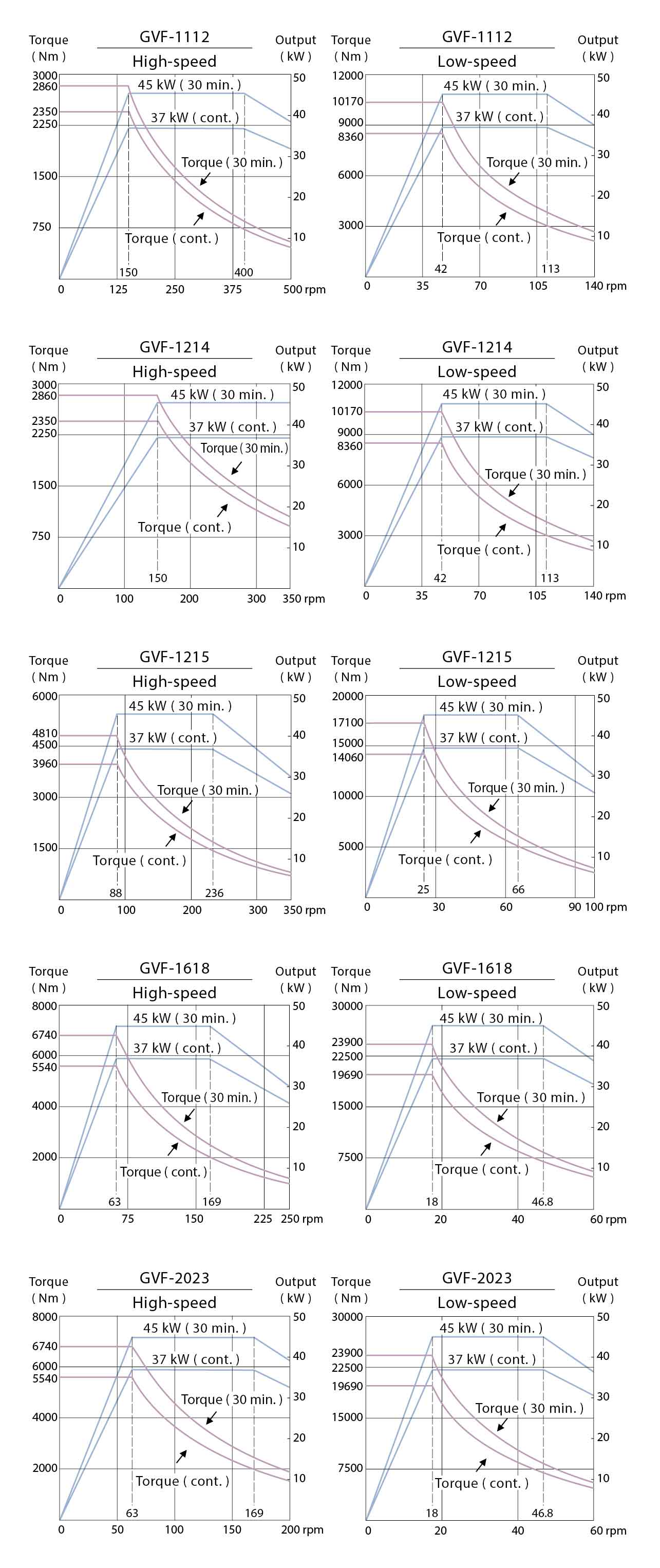

WORK-PIECE SPINDLE
The workpiece spindle uses a high-torque 2-speed gear box mated with a FANUC αi series spindle motor to provide 23,900 N-m extra large torque output on the low speed zone and satisfy different machining requirements.
The rigid, cross roller spindle bearings can sustain radial, axial, and high torque loads while maintaining precision - even when the table has been carr ying a maximum load for a long period of time.

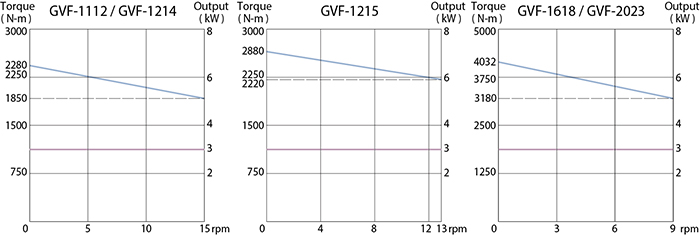

ULTIMATE C-AXIS CONTROL ( OPT. )
The optional Cf-axis and disk brake system available on the GVF series provide the most rigid and powerful type of C-axis on the market today. It has a worm gear drive system for high accuracy transmission and easy backlash adjustment. The indexing accuracy is up to 0.001°.
Top

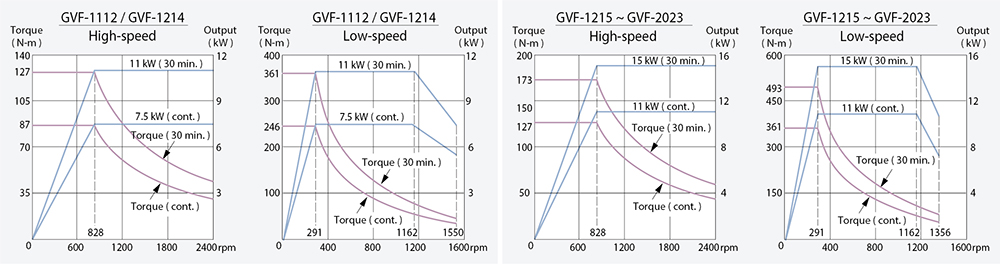

LIVE TOOLING SPINDLE ( OPT. )
The BT50 live tooling spindle is equipped with an extra high power spindle motor with a 2 setps gear box and max. 2,400 rpm speed to meet a variety of different applications such as turning, milling, drilling and tapping.
Ø 90 mm NN TYPE roller bearings provides high rigidity, high precision and long life span advantages.
