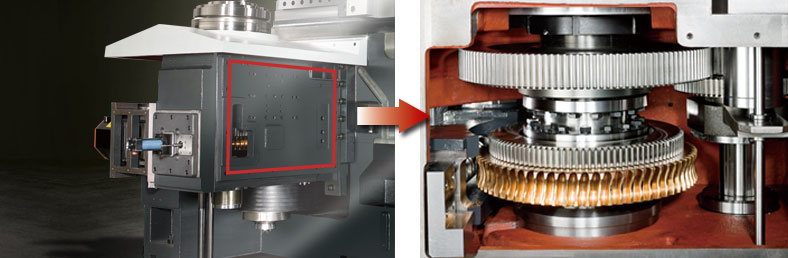

P4 grade ( Class 7 ) super-high precision bearings are directly assembled for maximum level of support and precision. Bearing configuration is designed for super heavy-duty cutting with ultra-smooth performance and long term durability with a higher level of accuracy.

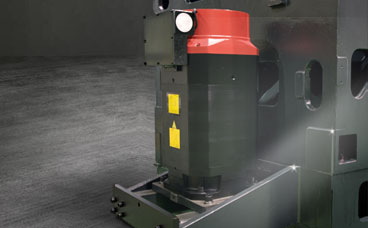

Generating twice the torque output of standard motors, the A/C, constant output, wide-range Fanuc αP60 high-torque i series motor is rated at 30 kW ( 40 HP ). This doublewound motor is designed to reach full output at 1/2 the rpm of standard motors, providing the ability to take heavier cuts in the lower rpm ranges.

Standard spindle orientation feature allows the spindle to stop at desired programmed position. Useful in broaching and manual part loading applications where a fixed spindle position is required.
