ULTIMATE TURNING POWER
High precision bearings are directly assembled for maximum level of support and precision. Bearing configuration is designed for heavy-duty cutting with ultra-smooth performance and long term durability with a higher level of accuracy.

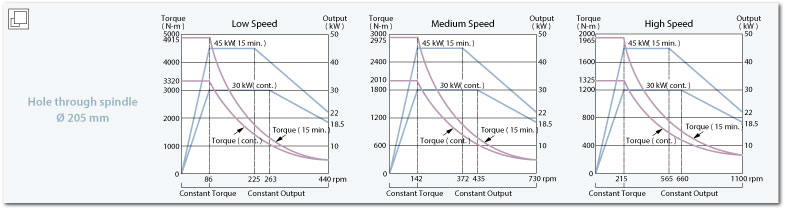

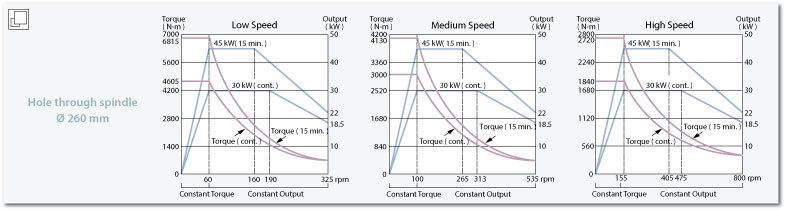

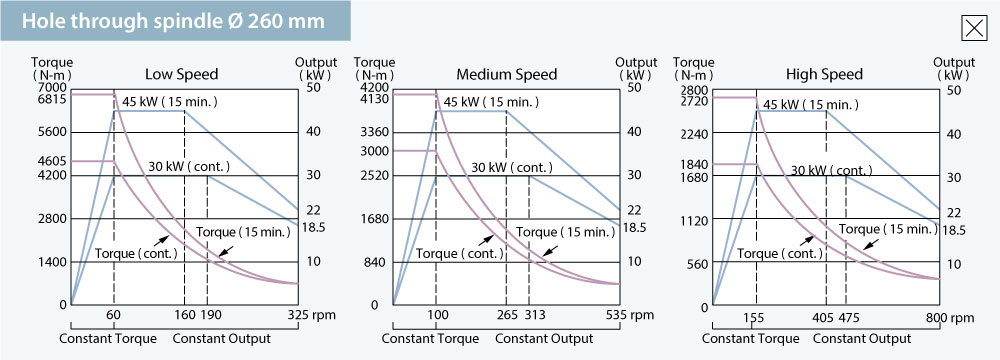

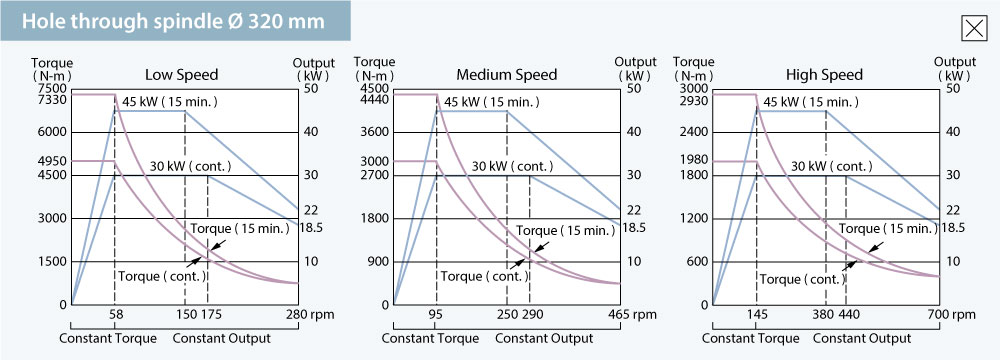

With over 7,330 N-m of torque available on the low speed of the 3-speed gear box, turning tough material with big diameter is now a simple task.
Standard spindle orientation feature allows the spindle to stop at desired programmed position. Useful in broaching and manual part loading applications where a fixed spindle position is required.Spindle Output Front + Rear Chuck
By installing air or manual chucks on both the front and rear of the spindle, it becomes possible to machine the ends of long work pieces. This configuration is especially useful in threading pipes.
