ADVANCED TURRET TECHNOLOGY

Heavy load servo motor tool indexing system provides 10 or 12-station turret with a 0.3 second indexing time.

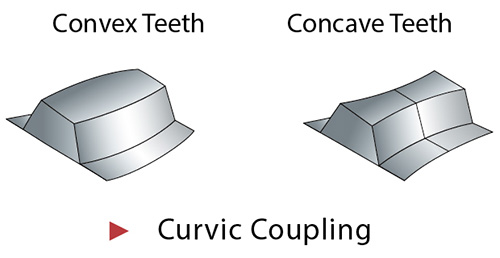

High precision curvic couplings with large diameter Ø 250 mm positioning tool plate. With 6,400 kg clamping force, it makes sure the rigidity of turret in any machining conditions.
The curvic couplings provide auto-centering, auto-clean and a large contact area which are designed to distinct from traditional couplings.
turret curvic_couplings
tailstock

SUPER RIGID TAILSTOCK

Programmable base tailstock can efficiently achieve tough machining tasks, and it has been simplified through use of custom software interface. Z-axis carriage automatically locks on to the base of the tailstock and drags it to the desired position.
The adjustment of the quill ( MT#4 ) is programmable and thrust can be adjusted by hydraulic.
Core components such as spindles, turrets, tailstocks are precisely developed by GOODWAY in a constantly temperature controlled A/C system to achieve the strict accuracy requirements and the best quality.。
develop

POWERFUL LIVE TOOLING TURRETS

Super rigid 3-piece curvic coupling design, turret can remain the same place during indexing to achieve the faster indexing.
The 12-station GOODWAY live tooling turret offers 12 stations available for live tooling ( live tooling tools rotate in working position only ) and features a non-lifting turret disk. ( Opt. 16 stations )

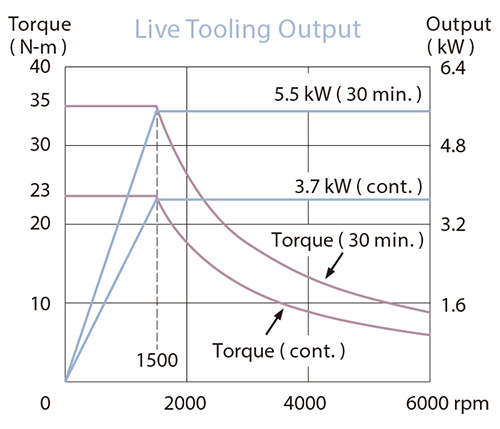

With the latest technology, live tooling is driven by an AC servo motor to provide ample power, in the form of torque. Now, even the toughest of jobs may be tackled without a sweat.
live_tooling_turret live_tooling_output

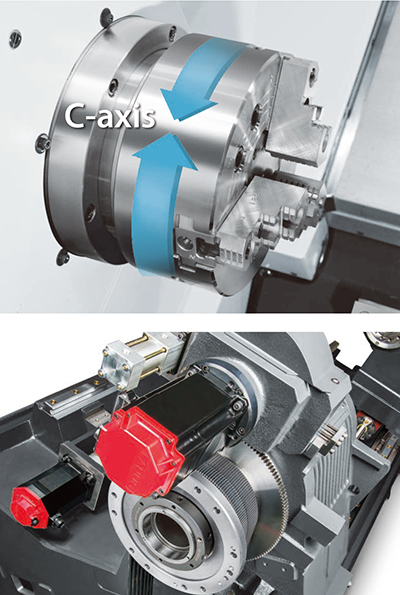

HIGH PRECISE C-AXIS

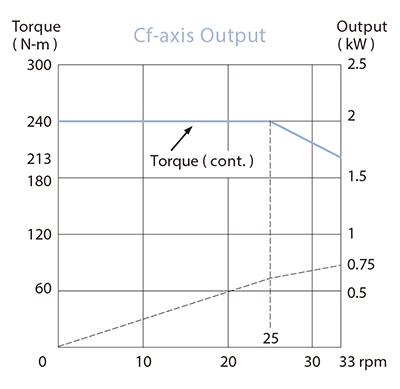

C-axis adopts super rigid Cf-axis with disk brake system, and with the FANUC servo motor generating 240 Nm ( cont. ) of torque it offers excellent surface finishes and accuracy. Plus, dynamic accuracy is within ± 0.02º even under heavy cutting condition.

c_axis_output
c_axis
