Y-AXIS MACHINING CAPABILITY
Y-axis control further enhances multi-tasking live tooling capabilities and improves various machining precision. High precision grooving and X-axis off-center drilling are enabled.
Rough Grooving
Finish Grooving
On Y-axis equipped machines, the turret is mounted on a secondary 30 degrees wedge saddle on top of the X-axis slide. Both X & Y axes have extra wide linear guide ways to provides maximum strength.

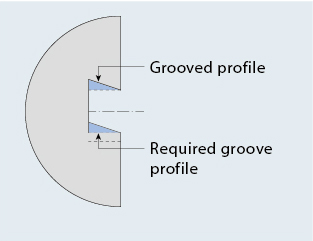

Grooving by Polar Coordinate Interpolation
Grooving with Y-axis control produces grooves with higher accuracy.
Grooving with Finish Pass Using Y-axis
Y-axis travel direction
