TURNING TECHNOLOGY

P4 grade ( Class 7 ) super-high precision bearings are directly assembled for maximum level of support and precision. Bearing configuration is designed for super heavy-duty cutting with ultra-smooth performance and long term durability with a higher level of accuracy.

The heavy-duty headstock is of one-piece casting reinforced with heat dispensing fins.

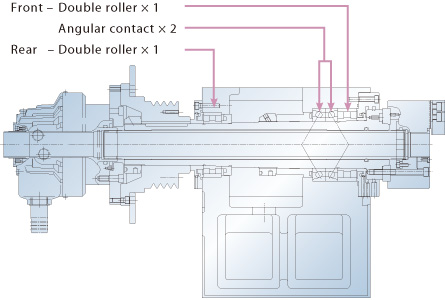

Bearing configuration :

Generating twice the torque output of standard motors, the A/C, constant output, wide-range Fanuc αP22 high-torque i series motor is rated at 15 kW ( 30 min ). This double bind motor is designed to reach full output at 1/2 the RPM of standard motors, providing the ability to take heavier cuts in the lower RPM ranges.
